Mini Laboratory Spray Dryer

Place of Origin : China

Brand Name : OEM

Certification : CE;ISO

Packaging Details : Standard export Carton

MOQ : 1 set

Price : Negotiable

Delivery Time : 20-30days

Payment Terms : L/C, T/T

Supply Ability : 10 sets per month

Application : Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, Liquid To Powder Machine

Condition : New

Voltage : 108V-240V

Power(W) : 3KW

Dimension(L*W*H) : 750*900*1400mm

Key Selling Points : Easy to Operate

Warranty : 1 YEAR

After-sales Service Provided : Online support, Video technical support, Free spare parts

After Warranty Service : Video technical support

Applicable Industries : Laboratory

Local Service Location : None

Showroom Location : None

Weight : 130kg

Heating Source : Electricity

Material : Stainless Steel

Installation : Engineer's Guidance

Usage : Milk Powder, Orange Juice, Instant Coffee Powder, etc

Capacity : Lab Type, Pilot Type, Industry Type Available

Spray Dryer OEM : Please contact

Spray Drying Machine Factory Visit : Please Contact

Color : White

Type : Spray Drying Equipment

Contact Now

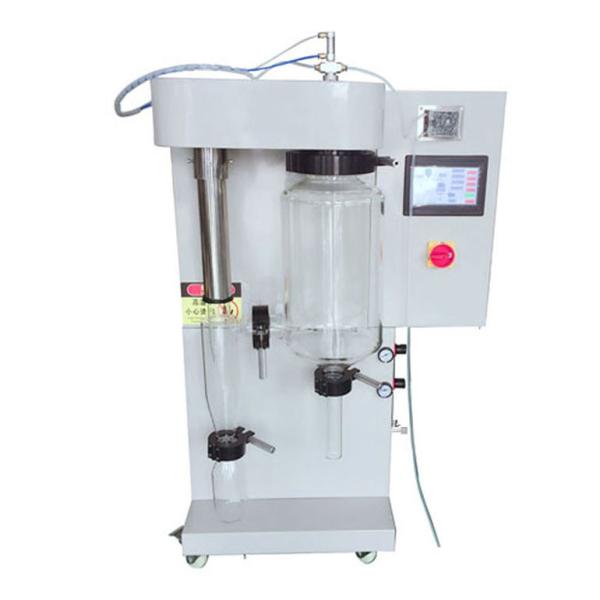

Mini Laboratory Spray Dryer

Product Description

Spray drying machine is especially suitable for drying the heat sensitive materials, after drying, there's no need for smashing and sorting, so as to reduce the operation procedures and save your time.

Technical Parameters

Max capacity	1500-2000ml/h
Temperature range of Inlet air	30C -280C
Temperature range of outlet air	40C -120C
Precision of temperature	± 1 C
Dryer time	1.0-1.5 S
Speed of squirmy pump	30-2000ml/h,
Consume of dryer air	0-330m3 /h, max pressure: 686Pa
Consume of spray air	0-4.2m3 /h, spray pressure: 2-5bar
Spray system	2 liquid nozzles with standard 1.0mm jet
Spray system	options of 0.5/0.7/1.5/2.0/2.5mm
Spray direction	downwards co-current
Power	3.5KW 108V-240V
Dimensions	6505001550 ( mm ) L * W* H

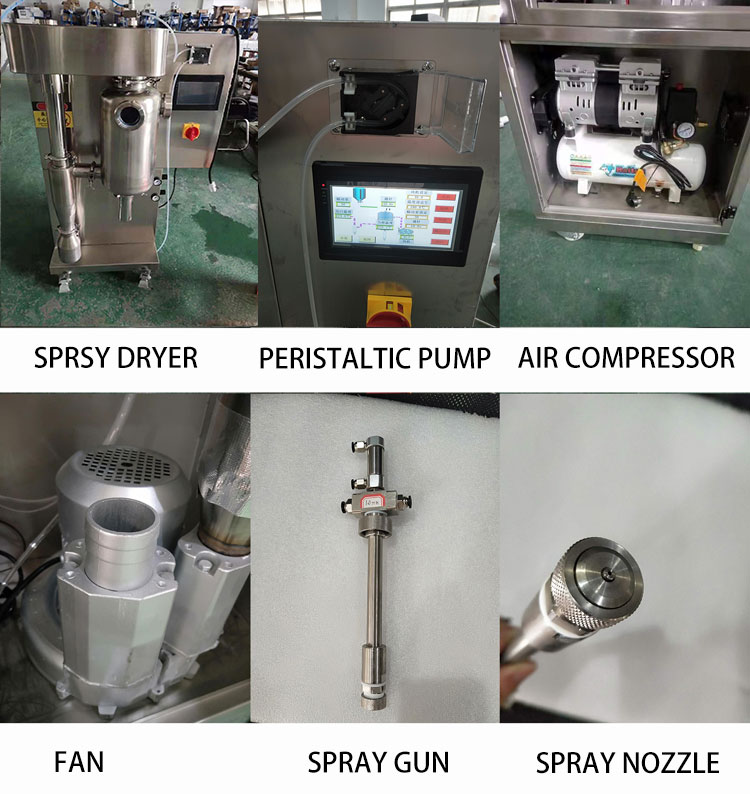

Accessories

No	Name	Qty
1	Drying Chamber	1
2	Cyclone	1
3	Fan	1
4	Peristaltic pump	1
5	Air compressor	1
6	Collection bottle 500ml	1
7	Sample collection tube	1
8	Silicone tube 6mm	1.5m
9	Nozzle	1
10	Black Clamp	1
11	Nozzle cleaner	1
12	Power wire	1

Product Features

1. High-tech nozzle,high efficiency.

2. LCD touch-screen display:inlet air temperature/outlet air temperature/pump speed/air volume/needle frequency.

3. Nozzle cleaner(needle)is set in the machine,and nozzle can be cleaned automaticaly by the needle when blocked.Needle frequency can be adjusted.

4. Shutdown protection function:the system will stop when pressing the stop botton,all parts except the fan will stop working.Heating system won’t be damaged in this way.

5. Material won’t get polluted due to the special material of the atomizing.

drying and collection system.

6. Two-fluid nozzle,stainless steel,compact stucture,no accessory device.

7. PID constant temperature control,precise temperature control,precision is ±1℃.

8. Feed rate can be adjusted by the peristaltic pump,Min. samples can reach 30ml.

9. Uniform product powder,above 95% powder keep within same size range.

Product Application

1. Chemical industry: hydrated silica, concrete additives, barium sulfate, basic chromic sulfate, alumina, titania, kaolin, ferrite, steatite, carbide, fertilizers, dyes, scouring agents, ACR assistants, latex, water purifiers, resins, plastics, cryolite.
2. Food Industry: dextrin, maltose, albumen powder, vitelline powder, compound sugar, granular grease, instant coffee, amylum, flavors, garden stuff. It is applied in drying of some kinds of liquid material, such as solutions, emulsions, suspensions, liquid pastes, etc.
3. Dairy: skim milk powder, whole milk powder, soy milk powder, ice cream powder, milk extract powder, etc.
4. Pharmaceutical industry: Chinese drugs and western medicine powder, antibiotics, biochemical products, vitamins, pesticides, hydrolyzed proteins, enzymes, single cell proteins, etc.
5. Building material industry: ceramic body, frit, superfine powder.
6. Environmental protection: flue gas desulfurization, disposal of black liquor and wastewater of pharmaceutical factories.

7. Others: fishmeal waste, feed, etc.
